Six Color printing machine
| Price: |
10000.0~25000.0 USD |
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
YT-61200
Packing:
shrink film packing
Plate:
Letterpress
Color & Page:
Multicolor
Brand Name:
Ounuo
Voltage:
380V,50Hz 3 Phase
Dimensions(L*W*H):
4800X2300X2400MM
Certification:
CE
Printing Color:
6 Colors
Production Capacity:
30 Set/Sets / Month
Delivery Date:
20-30 days
Type:
Flexographic Printer
Usage:
Paper Printer
Automatic Grade:
Automatic
Gross Power:
20KW
Weight:
4500KGS
After-sales Service Provided:
Engineers available to serv...
Flexograpgic Printing Machine
1,Easy operation
2,Reliable drying system
3,Pneumatic printing cylinder
4.auto ink running

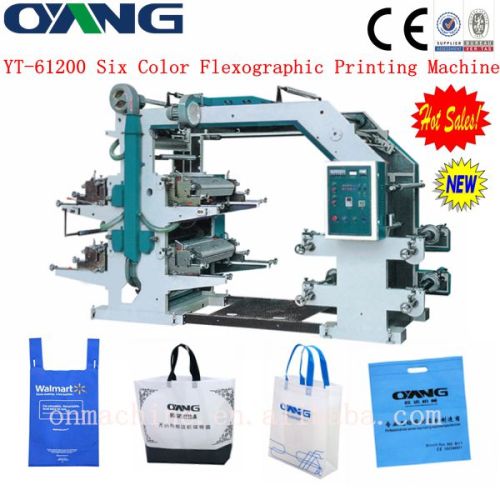

Name:YT-61200 Six Color Flexographic Printing Machine Price In China
Six Color Flexographic Printing Machine , adopting photosensitive resin as printing plate, is commonly known as the flexographic printing machine. It is suitable for printing packing materials such as polyethylene, polypropylene bag, cellophane and
roll paper, etc.
It is a kind of ideal
printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Technical Parameter:
Type | YT-6600 | YT-6800 | YT-61000 |
| Max.Effective Printing Width | 560mm | 760mm | 960mm |
| Max.Web Width | 600mm | 800mm | 1000mm |
| Max.Printing Speed | 50m/min | 50m/min | 50m/min |
| Max.Mechanical Speed | 60 m/min | 60 m/min | 60 m/min |
| Max.Diameter of Roll Material | 450mm | 450mm | 450mm |
| Internal Diameter of Roll Core | 76mm | 76mm | 76mm |
| Rang of Repeat Printing Length | 191-914mm | 191-914mm | 191-914mm |
| Accuracy of Registration | ±0.5mm | ±0.5mm | ±0.5mm |
| Plate Thickness | 2.38mm | 2.38mm | 2.38mm |
| Heating Power | 9Kw | 13.5Kw | 18Kw |
| Total Power | 15Kw | 19.5Kw | 24Kw |
| Weight | 3500kg | 4200kg | 5000kg |
Overall Dimension (L × W × H )mm | 4300×1700×2950 | 4300×1900×2950 | 4300×2100×2950 |
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
The Details Of Machine:
Printing Samples:
