square bottom paper bag making machine from China manufacturer

Price:	21000.0~51000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ONL-ZD290/460

Production Capacity: 25set/month

Delivery Date: 30 days

Certification: CE

Brand Name: OUNUO

Means of Transport: Ocean,Land,Air

Packing: wooden case packing or plas...

Product Type: Paper Bag Making Machine

Processing Type: Paper Folding Machine

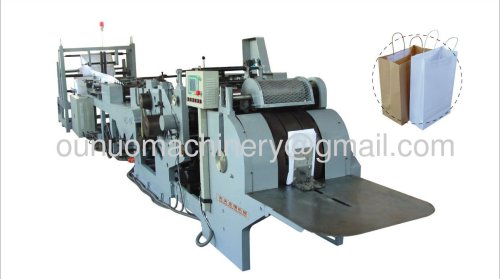

This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting.

10KW, 18.5KW High Speed Roll Feeding Square Bottom Shopping Paper Bag Making Machine

ZD-340 Sheet Feeding Paper Handbag Making Machine

Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper handbag making machine. The materials should be printed sheet paper or sheet paper as per end-user's preference.This machine features a continuous function of automatic paper suction, gluing, creasing, bottom sticking and bag formation at a stroke. It is an ideal equipment for making paper handbag for shopping, small paper bags packing food & grain.

Model	ZD-340
Paper size max.	985*600MM
Paper size min.	465*350MM
Sheet Width	465-985MM
Tube Length	270-600MM
Basic Weight	100-230g/m
Bag Width	140-330MM
Bottom Width	80-150MM
Power Consumption	10KW
Speed	40-60bags/min
Machine Weight	10000KG
Machine dimensions	1300016001700MM

Fourth: ZD-430 Sheet Feeding Paper Handbag Making Machine
Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper handbag making machine. The materials should be printed sheet paper or sheet paper as per end-user's preference.This machine features a continuous function of automatic paper suction, gluing, creasing, bottom sticking and bag formation at a stroke. It is an ideal equipment for making paper handbag for shopping, small paper bags packing food & grain.

Model	ZD-430
Paper size max.	1185*600MM
Paper size min.	525*380MM
Sheet Width	525-1185MM
Tube Length	270-600MM
Basic Weight	100-230g/m
Bag Width	160-430MM
Bottom Width	80-150MM
Power Consumption	10KW
Speed	40-60bags/min
Machine Weight	10000KG
Machine dimensions	1300018001800MM

Fifth:ZD-460 High-Speed Roll Feeding Square Bottom Paper Bag Making Machine

This is a new high speed square bottom paper bag machine made by us. Its advantages are high speed, high efficiency and wide-range adjustment; In addition, it has the international advanced technology to make bags without creases on each side. It is easy to operate, lift raw materials automatically, correct errors automatically and control tension automatically, all the processes are done by PLC. This machine is the quintessence both of home and abroad.

Model	ZD-460
Paper Roll Width	530-1350mm
Tube Length	270-700mm
Bag Width	160-460mm
Bottom Width	80-200mm
Paper Weight	70-160g/m
Max. Paper Roll Diameter	ф1600mm
Material Core Diameter	ф76mm
Max. Production Speed	150 /min 150bags/min
Total Power	18.5Kw
Machine Weight	11000 kg
Machine dimensions	13000021002300mm
