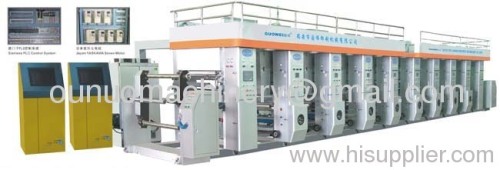

Name:ASY-600 high-speed computer Rotogravure printing machine(winding and unwinding out )
The products in the domestic first seven motor using advanced PLC control system (seven vector motor control of the closed-loop tension control system, four paragraphs from the Japan Proton positions in the motor cylinder + ABB + Germany + Japan Yaskawa Siemens PLC) machine with excellent rigidity and job stability, compact structure, attractive appearance, suitable for a variety of web, printing gravure film
The main structure and features:
1 This machine is suitable for BOPP, PET, CPP, PVCD and the same nature film, paper, cellophane and aluminum foil. Its printing speed of 10-140 m / min, machine speed 150 m / min.
2. Main drive: The main transmission vector of Japan Yaskawa inverter vector control motor, drive each plate. Features: saving electricity.
3. Without shaft-mounted version of the agency: loaded version with the cylinder, pull the mandrel for loading, horizontal adjustment using screw movement. Features: reduce time to replace, to ensure concentricity, improve product quality.
4 ink scraper: The blade can be adjusted up and down and at any angle, squeegee pressure single cylinder, lateral movement synchronous motor rotating cam. Features: extended version of the birthday noodles.
5 imprint lifting mechanism: dual impression cylinder from the lock-bit step-up and slider, and down the cylinder on the cylinder leakage protection under the swap. Features: to ensure that the average pressure to ensure that color.
6. Chromatic robot: the use of computer-controlled synchronous motor drive by ball screw gear adjustment, automatic trapping. Features: rotating lubrication, chromatography and high precision.
7 received, discharge institutions: the use of duplex, close, release the tension and material collection, discharge tension with variable frequency vector control traction speed. Features: Acceleration chromatic stability, horizontal direction, save for large quantities of printed materials, inks, solvents and energy, then the expected speed of 120 m / min, then the biggest waste of material is about 10 meters, more than three motor savings of 40 meters, inks, solvents and energy saving about 20%, greatly reducing the cost of the main products.
8. Drying and cooling structure: the use of centrifuges blowing smoke oven, electric oven tube located in each port of hair heating, oven heat within the formation of wind circulation, temperature control by the intelligent temperature controller, water cooled roll back to ensure that film cooling. Recycled air circulation. A cycle of every two-color equipment. Features: saving electricity
Main technical parameters:
Model | ASY-600A (8 color) | ASY-800A (8 color) | ASY-1000A (8 color) | ASY-1200A (8 color) |
Plate diameter | 100-320mm | 100-320mm | 100-320mm | 100-320mm |
Printing width | 600mm | 800mm | 1000mm | 1200mm |
Unwinding diameter | 800mm | 800mm | 800mm | 800mm |
Winding diameter | 800mm | 800mm | 800mm | 800mm |
Printing speed | 10-140 m / min | 10-140 m / min | 10-140 m / min | 10-140 m / min |
Overlay accuracy | ≤0.1mm | ≤0.1mm | ≤0.1mm | ≤0.1mm |
Drying | Electric heating (or steam or oil) | Electric heating (or steam or oil) | Electric heating (or steam or oil) | Electric heating (or steam or oil) |
Machine power | 108kw | 128kw | 148kw | 168kw |
Weight | 22000KG | 24000KG | 26000KG | 28000KG |
Dimensions | 14800*2700*2500mm | 14800*2700*2500mm | 14800*2900*2500mm | 14800*3100*2500mm |
